※ This product is "medical device", please read the "Precautions for use" and "How to use" carefully.

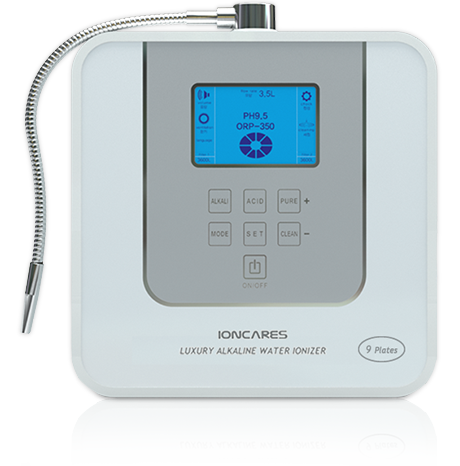

|The alkaline water generator
|Authorization number of the article
|9 white gold titanium electrode plates
|Up to 250W
|6.0kg (per unit)
|Dimensions of the body
|340(w)mm X 340mm X 147mm
|Purpose of use
|It is a device that produces alkaline ionized water of pH over 8.5 to 10.0 to electrolyze drinking water and it is a device that generates ionized hydrogen water of pH 9.5 and improves gastrointestinal symptoms (chronic dianhea, indigestion, abnormal fermentation in the stomach) (pH) 9.5.
|Use Precautions and Explanations
|Refer to the User's Manual
|Type of protection and information for the electrical format
|Class 1 equipment, type B equipment
|Rated voltage and frequency
|220V / 60Hz
|Primary filter: 3,500L Secondary filter: 3,500L
Treatment flow 2.5min (+0.5min)
See other user manuals
It’s a device that generates alkaline water with pH 8.5 to 10.0 through electrolysis that is helpful in improving major stomach troubles such as
chronic diarrhea, indigestion, abnormal fermentation within stomach and hyperacidity.
Application of 250W SMPS Method
Adjustment of current to 240 stages
Usage of a Masimum nine layers of high purity white gold coated electrode plates
Using a 5" large color LCD
ygienic auto-cleansing and auto discharge system preventing pollution of gems
Application of High functional Two-Filter Method
Application of Original Recognition Chip of Filter
· The previous transformer method lacks power stability posing difficulty in pH realization, however, Ioncare Series has applied SMPS method, allowing it to improve the stability of power and to allow an accurate pH realization.
· In addition, even if it’s the same SMPS method, unlike the other company products that uses approximately 150W, the usage of 250W power enables the generation of high purity alkali water and the sustainability of the alkali water after the generation excels.
· Despite the fact that the pH of raw water differs according to the environment of each region, there are cases whereby the pH that suits the respective raw water cannot be generated, but Ioncare Series allows the current to be adjusted to 240 stages, generating stable alkali water.
· The performance and effect of this technology is outstanding overseas such as China and Europe in particular where the degree of raw water is high.
· Majority of domestic water ionizers mainly use 3~5 layers of electrode plates so once the water ionizer is used for about 1~2 years, there are cases whereby the electrolysis performance declines and the sustainability of alkali water after generation declines.
· Ioncare Series uses a bigger size electrolyzer when compared to the electrode plates of other company products and it has been designed to expand the performance of the electrode plates and to extend the lifespan with high purity alkali water and white gold coating, and variable application up to nine layers in maximum can be applicable.
· By using a 5” large color LCD which cannot be found in other company products, consumers are able to distinguish the stage of alkali water that is being discharged at one glance.
· Current pH and ORP indication / water flow indication / Cleansing status indication / Primary, secondary filter lifespan indication / ion water generation process indication / error indication / sound level feature / language and voice guide selection
· Valve method caused inconvenience to the consumer when using however, the Ioncare Series has been applied with Touch-Sensor method making it user friendly.
· In addition, touching buttons and error occurrences and all status within the water ionizer is informed with a voice, making it user friendly for elderly and children.
· lIf water within the electrolyzer is stagnant after generation of alkali water, germs will propagate and scales will form no matter how well it is cleaned.
· lIoncare Series does not only automatically clean the electrolyzer after generation of alkali water but also has been designed to automatically discharge the remaining water, resolving hygienic issues as well as expanding the lifespan of electrolyzer.
· One-Filter method lowers the purification capability so Two-Filter method has been applied to enhance the purification capability for reliable drinking water.
· In the previous products, the water ionizer functioned even with the usage of unverified filters, incurring a decline in the performance and lifespan of water ionizers, so customer dissatisfaction arose due to the uncertainty of filter performance.
· Ioncare Series applied original recognition chip of the filter enabling the consumers to use reliable products.
